I3200 - 32-Channel Charge Integrator Digital Electrometer

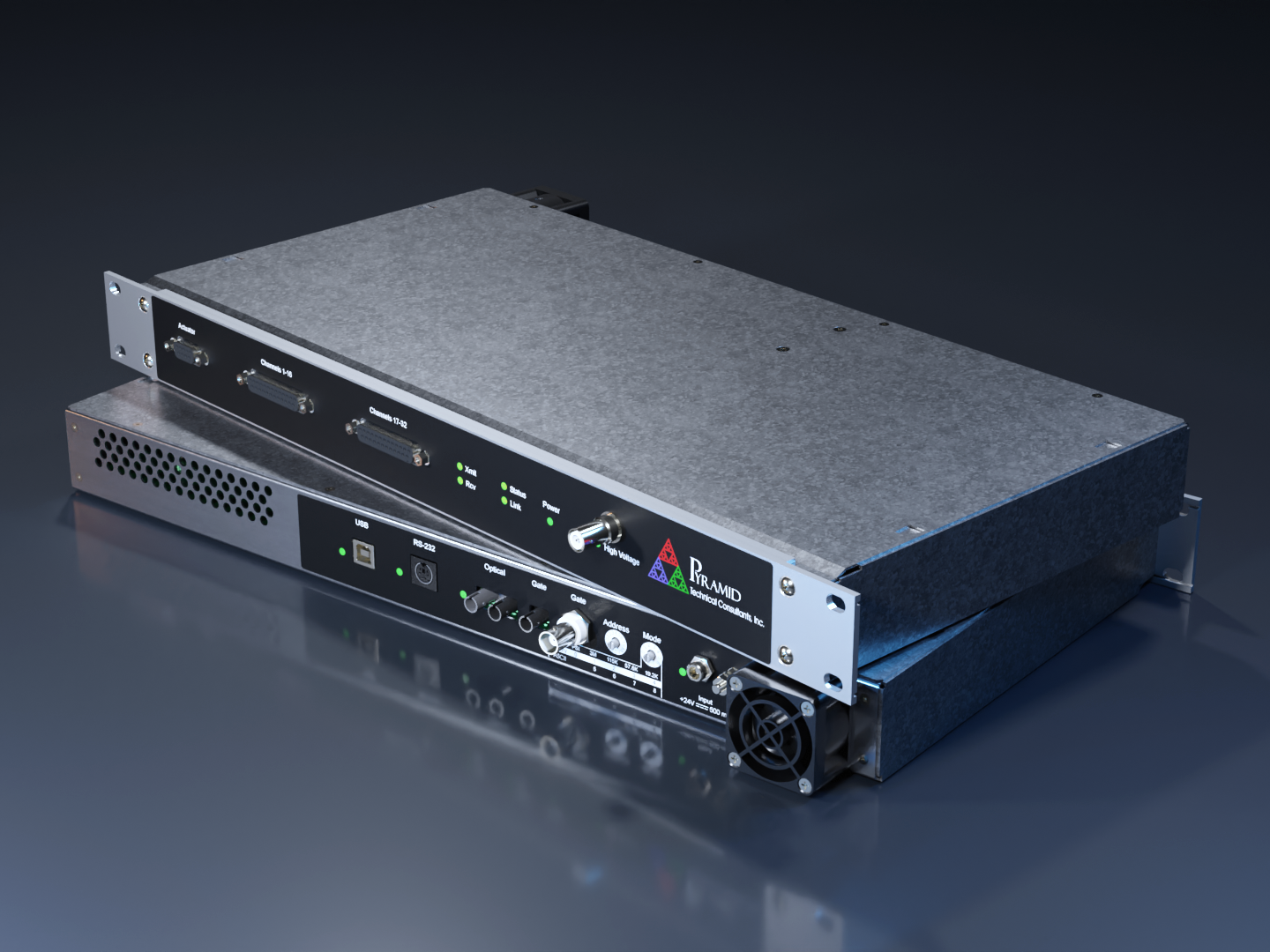

I3200 Render
Contact SalesGet a Quote
All files (6)

Description

The I3200 is a high-performance 32-channel gated-integrator electrometer designed for detailed monitoring and analysis of multi-segment detector arrays. With a dynamic current/charge range spanning from 0.1 pA to 100 µA and software-selectable feedback capacitors, it concurrently captures data from 32 detector channels with high precision. Key features include optional integrated high-voltage biasing, dual-mode charge/current integration, ultra-low noise (typical input noise <10 fA rms for 1 s integration), and ultra-fast fiber-optic data output. The I3200 is built for advanced applications such as multi-electrode ionization chambers, beam-profile grids, and segmented photodiode/detector arrays where synchronized readout, high throughput, and robust integration are essential.

Features

  • Thirty-two gated integrator channels
  • Dynamic range 0.1pA to >70 µA
  • Optional integrated HV supply
  • Integrated actuator solenoid control
  • Integrated digitization and communications
  • Integrated calibration test source
  • Multiple trigger modes

Applications

  • Multi-electrode ionization chambers and ionization chamber arrays
  • Multiwire proportional chambers operating in current mode
  • Multiwire beam profile grids
  • Multi-segment photodiode arrays
  • Multilayer Faraday collectors for particle energy validation

Integrated High Voltage

  • Avoids the need for a separate external HV supply.
  • Precise programmable voltage control.
  • Choice of polarity, positive or negative, and range up to 3000V depending on the product.
  • Shared ground with measurement electronics to eliminate ground loops.
  • Short circuit protection and redundant output voltage monitoring.

Fiber Optics

Pyramid transmits measurement data over fiber-optic cable instead of copper, keeping signals immune to electrical interference. Our radiation-hard fibers have minimal light attenuation, enabling fast, reliable messaging across enormous distances.

IG2 EPICS Support

Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.

  • Runs on Windows and Debian Linux
  • Change PV names with simple XML configuration
  • Connect to multiple Pyramid devices at once
  • Add custom scale factors and offsets on a PV basis
  • Never have to recompile
  • Professional Pyramid support for bugs and features
