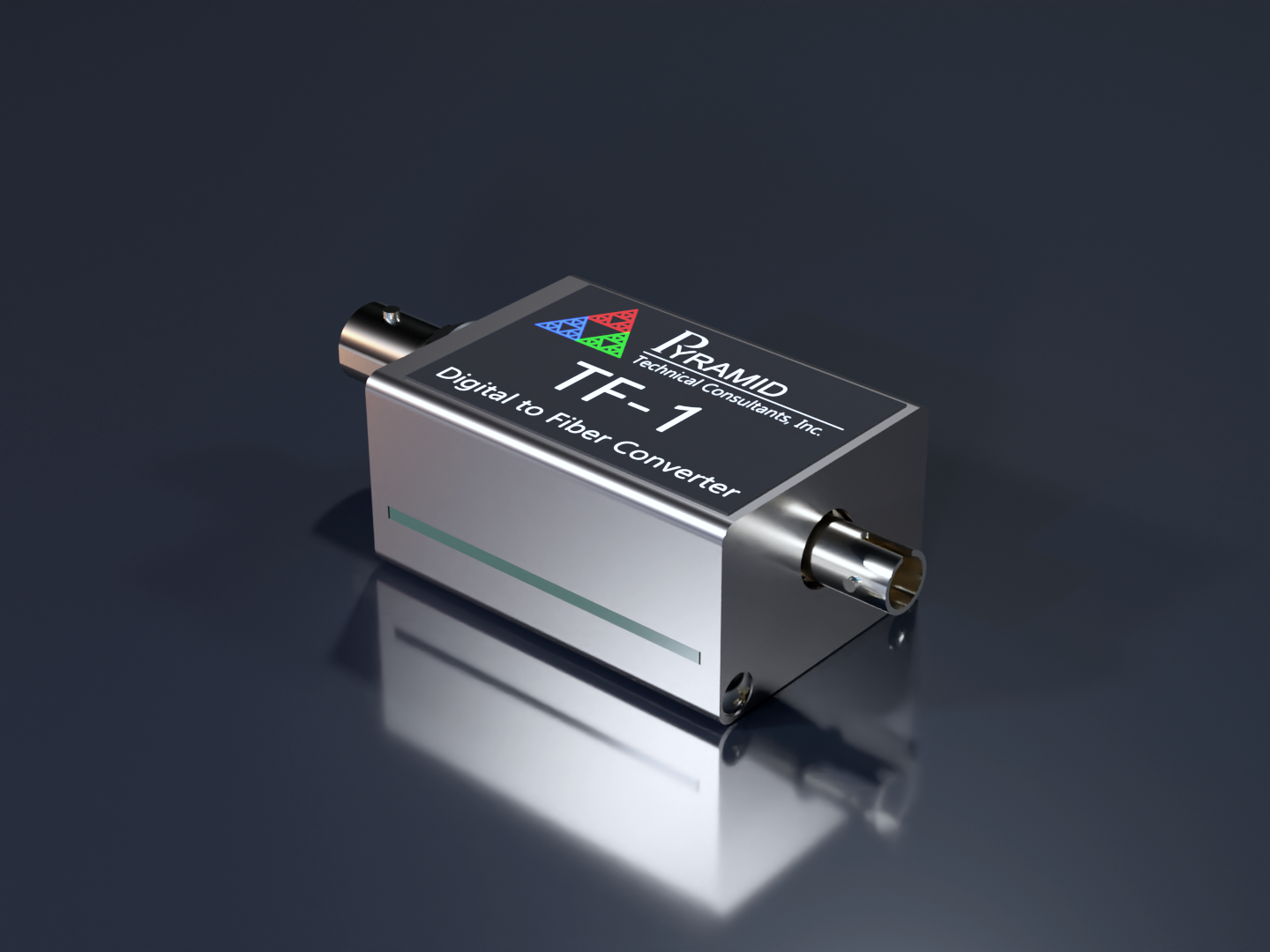

TF1 - Self-powered BNC TTL to Fiber-Optic Converter
Description
The TF1-850 is an efficient solution for converting TTL signals to ST fiber. This self-powered device draws power directly from the TTL input itself to drive the optical output, so no external power supply is needed. It accepts any TTL signal capable of driving a 50 Ohm terminated load: 10mA minimum drive current is recommended, rising to 30mA if you need full-rate transmission over a long fiber run.
The TF1 handles signal frequencies from DC to 25 MHz with a propagation delay of 25 nanoseconds or less, and its Broadcom (Avago) HFBR-1415TZ 850nm ST-bayonet transmitter can carry a signal up to 400m over 62.5 micron glass-core fiber. The compact package uses M2.5 threaded mounting holes for easy integration, and is rated for 10 to 35C operation and 0 to 50C storage, both at under 80% humidity, non-condensing.
For applications that require bidirectional conversion or cannot drive a 30mA load, consider the X22-ST-850 as an alternative; it is designed to pair directly with the TF1. If you need to fan out the signal to multiple fiber outputs, the X14 is the recommended choice.
Features
- TTL to fiber optic conversion from DC to 25 MHz, with propagation delay of 25 nanoseconds or less
- Self-powered directly from the TTL input signal, no external power supply required
- Female BNC input paired with an 850nm ST-bayonet output (Broadcom HFBR-1415TZ)
- Transmits up to 400m over 62.5 micron glass-core fiber optic cable
- Compact package with M2.5 threaded mounting holes
- Rated for 10 to 35C operation and 0 to 50C storage
Applications
- Converting a TTL signal to fiber for use with a Pyramid device
- Trigger and logic level signal delivery in distributed systems
- High voltage digital I/O isolation
- Long-distance transmission of digital signals over fiber
