Pyramid devices are modular and perfect for distributed control systems. Easy to use software and networking make prototyping and integration rapid. Pyramid provides long term customer support and high reliability for final production systems.
Our devices can tolerate high levels of HF, RF and transient electrical noise. The real time fiber optic communications between controllers and front-end devices are completely immune to electrical interference. Fiber optics can also span voltage gaps of hundreds of kilovolts. An example application is control of the power supplies in the high voltage terminal of an accelerator ion source.

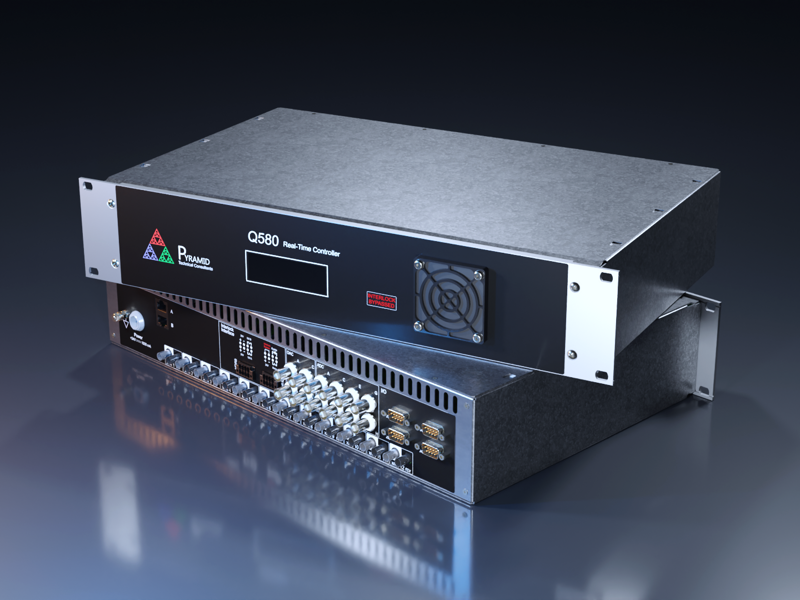

Q580
High Speed Real-Time Loop Controller

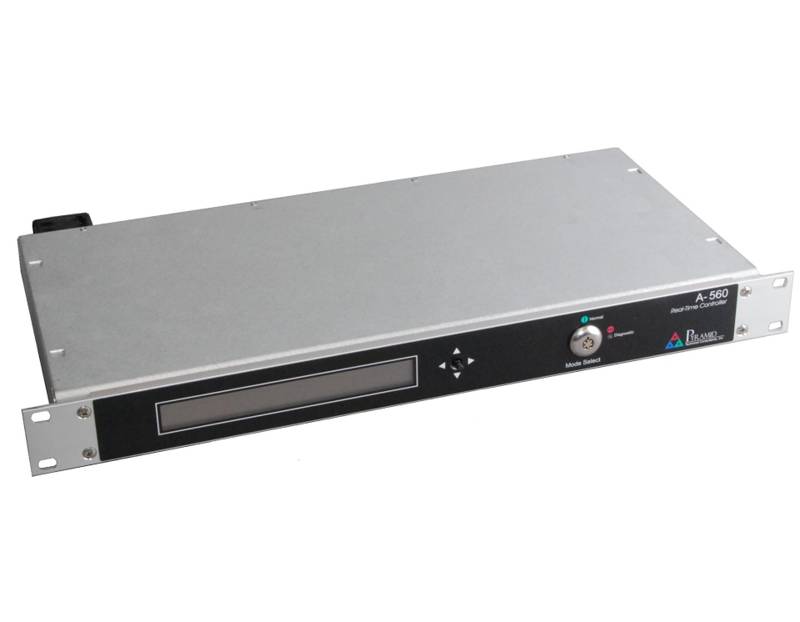

A560
Real-Time Loop Controller

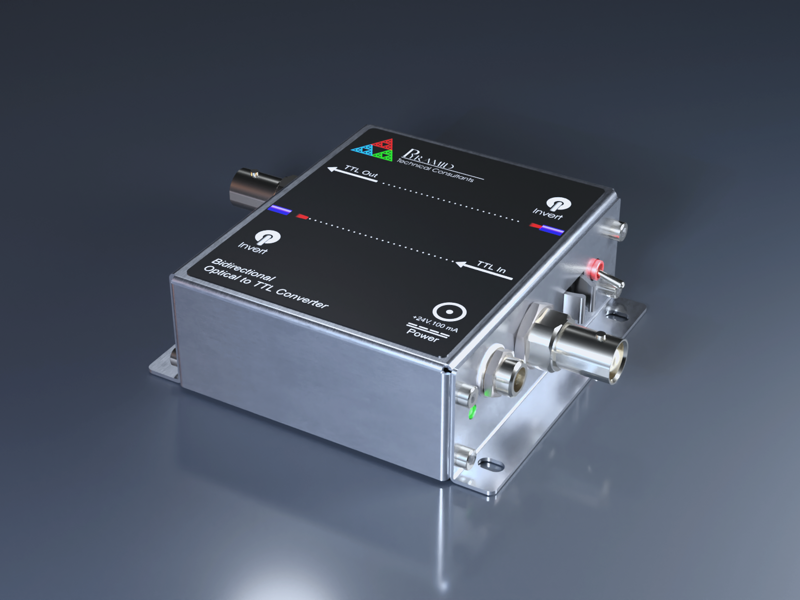

X22
Bi-directional BNC TTL to Fiber Optic Converter
M40
16x Analog 16x Digital GPIO

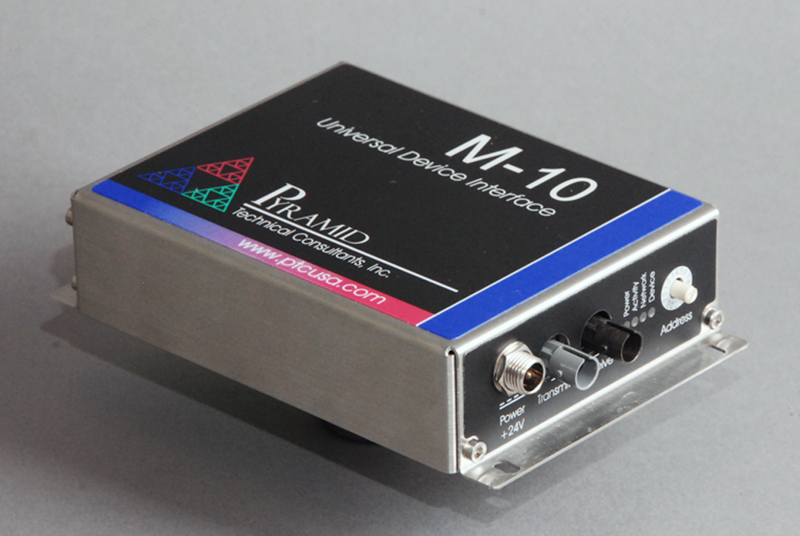

M10
2x Analog 4x Digital GPIO

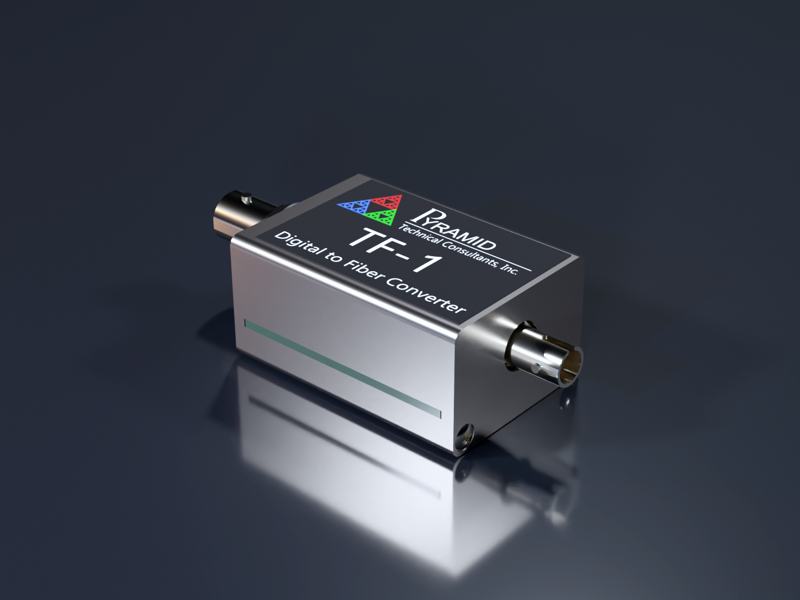

TF1
Self-powered BNC TTL to Fiber-Optic Converter

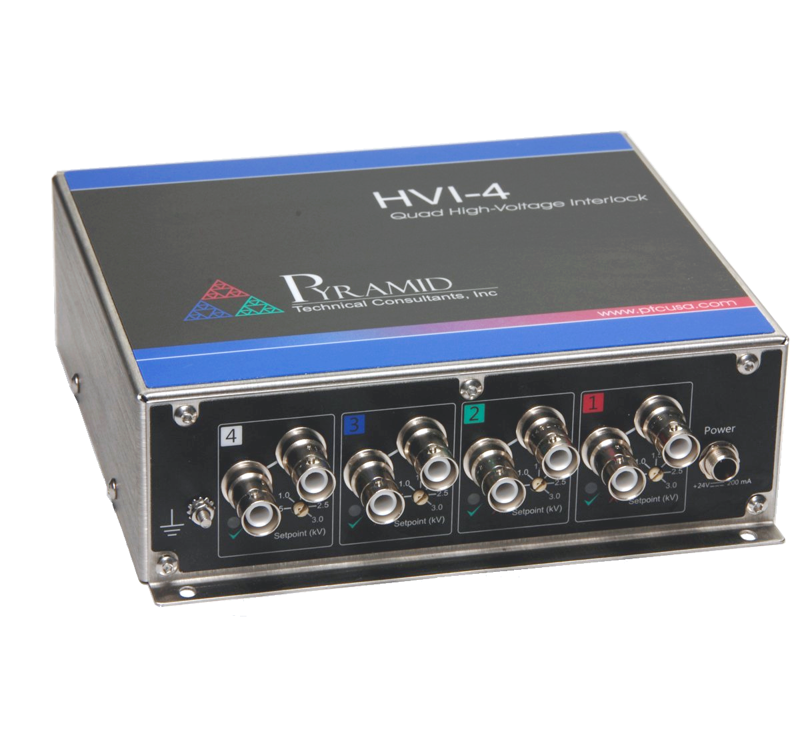

HVI-4
Bias Voltage Interlock Unit
B10
Digital I/O Interface

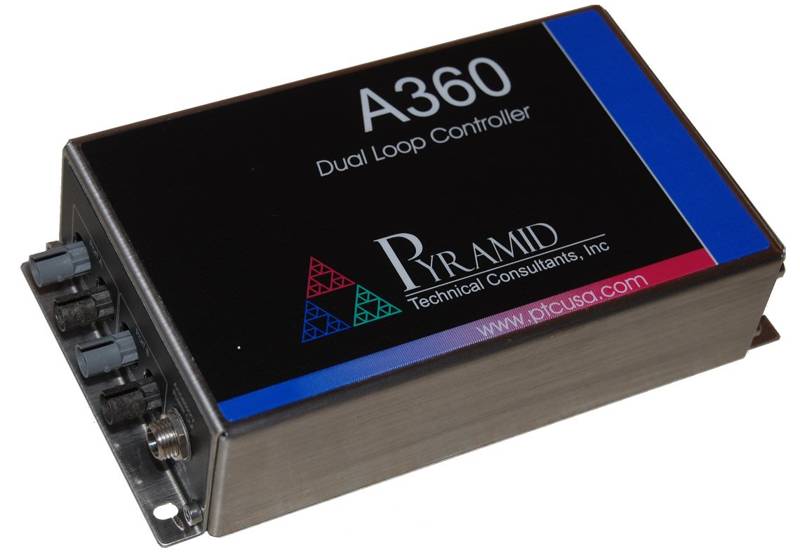

A360
Fiber-Optic Loop Controller

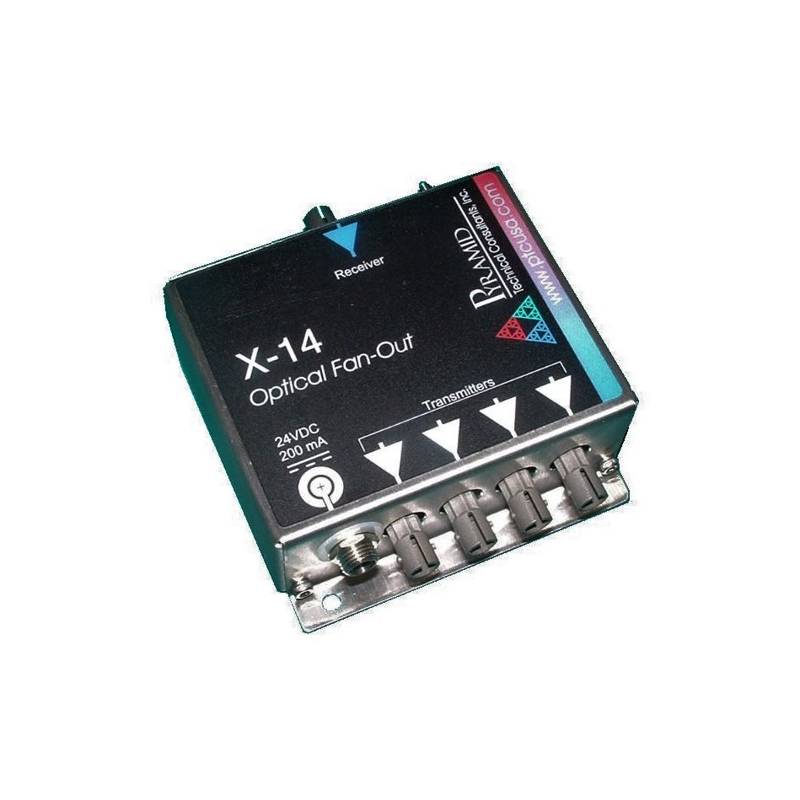

X14
1:4 Fiber-Optic Trigger Fanout
